    DrainEye R8 Mini 30m

    Draineye R8 Mini is equipped with a high-definition camera with a diameter of 23mm and a length of 53mm. It features a 1/3-inch 2-megapixel sensor, a sapphire mirror, and a 304 stainless steel casing. It has IP68 waterproof rating and a 120 ° wide-angle viewing angle. The camera is equipped with 9 high brightness adjustable LED lights, supports automatic horizontal correction, and comes standard with two protective brackets of 40mm and 85mm. It also supports optional built-in 512Hz transmitter. The system is equipped with a 9-inch high-definition LCD display screen with a resolution of 1024 × 600 and a 16:9 widescreen ratio. It has functions such as recording, taking photos, and playback. It uses TF card storage (standard 32GB) and is equipped with LED brightness adjustment buttons, suitable for drainage pipe inspection in various complex environments.

    • Product Name Drain eye R8-Mini
    • Camera Size Φ23 mm × L53 mm
    • Sensor 1/3" 2-Megapixel High-Definition CMOS
    • Lens Sapphire Protective Glass, 304 Stainless Steel Housing
    • Waterproof Level IP68
    • Viewing Angle 120° Wide Angle
    • Lighting 9 High-Brightness LEDs, Adjustable Brightness
    • Built-in Locator 512Hz Emission (Optional)
    • Display Screen 9-inch High-Definition LCD
    • Storage Medium TF Card (Standard 32GB)
    • Protective Brackets Two Sizes Included (40 mm & 85 mm)
    Contact us Download

    Product Details

    ● Camera size: Φ 23 mm x L53mm

    ● Sensor: 1/3 inch 2 million high-definition pixels

    ● Sapphire lens protective glass made of 304 stainless steel material

    ● Waterproof level: IP68

    ● Camera angle: 120 °

    ● Resolution: 1024 X600

    ●  Display ratio: 16:9

    ● Video recording, photography, video playback and other functions

    ● Storage medium TF card (standard 32GB)

    ● Camera LED brightness control button

    976ae9fcd3b2268d5b28b597ed935e0
    4ae3d92a5f65bb9286106073a584928

    AMJET launches camera DrainEye R8 Mini series: portable commercial sewer detection camera

    In the early stages of entrepreneurship, plumbers may not choose to invest in sewer cameras. But as their business becomes increasingly busy and their skills become more professional, when customers are troubled by pipeline blockages, a camera can quickly help them detect the blockage point, then use a high-pressure cleaning machine or flexible cleaning machine to clean the pipeline, and then use the camera for the final inspection work, displaying their cleaning results to customers for viewing. A camera can make you more professional, a more professional tool, and also increase the income of plumbers.

    The Draineye R8 Mini series sewer camera, 30M detection line, small size, can be used for home pipeline inspection


    Experience the excellent features of the  DrainEye R8 Mini series

    ● Camera size: Φ 23 mm x L53mm

    ● Sensor: 1/3 inch 2 million high-definition pixels

    ● Sapphire lens protective glass

    ● 304 stainless steel material

    ● Waterproof level: IP68

    ● Camera angle: 120 °

    ● 9 high brightness LEDs, adjustable lighting

    ● Resolution: 1024 X600

    ● ● Built in 512Hz probe, manual focusing function

    ● Storage medium TF card (standard 32GB)

    ● Camera LED brightness control button

    ● Camera function

    The DrainEye R8 Mini series is a camera assisted tool machine that every professional plumber cannot do without, and it is suitable for all pipelines. Many plumber entrepreneurs have already started using it in Europe, Asia, and North America. If you add a camera to your tools, the DrainEye R8 Mini series may be your best choice.

    ff070aaeac2db8e0eac8917cc64fa4c

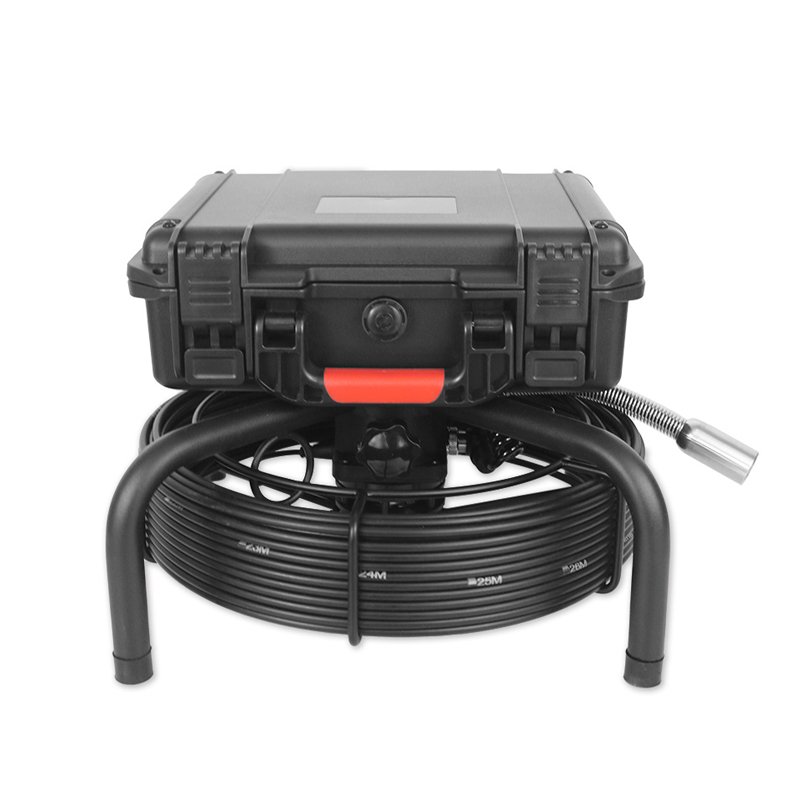

    Other features of DrainEye R8 Mini series

    ● Camera with gimbal, no blind spot detection pipeline

    ● The control panel uses push rod operation, which is more precise and sensitive than button operation.

    ● Handheld design, one person can also bring it into small spaces

    ● Long standby time

    Accessories package

    ● Camera lens

    ● Lens holder

    ● Accessories package
