R22-MAX Sewer Inspection Camera for CIPP Pipe Lining

R22-MAX Sewer Inspection Camera for Professional CIPP Pipeline Inspection

As pipeline rehabilitation and trenchless repair technologies continue to develop, contractors and municipal maintenance teams require more accurate and efficient inspection equipment. To meet these demands, Amjet proudly introduces the R22-MAX sewer inspection camera, a professional dual-camera pipeline inspection system specially designed for real-world CIPP pipe rehabilitation projects and underground drain inspections.

The R22-MAX combines advanced imaging technology, durable industrial construction, and intelligent inspection functions into one portable system, helping operators improve inspection efficiency and reduce maintenance downtime.

Designed for CIPP Pipe Rehabilitation Applications

Cured-In-Place Pipe (CIPP) rehabilitation requires accurate pipeline inspection before, during, and after lining installation. The Amjet R22-MAX is engineered specifically for these working environments.

With support for pipe diameters from 40mm to 200mm, the system is suitable for residential drains, commercial pipelines, municipal sewer systems, and trenchless rehabilitation projects.

The inspection camera system features a dual-reel design that allows operators to switch between different inspection requirements quickly and efficiently.

Dual-Camera System for Different Inspection Needs

One of the biggest advantages of the R22-MAX is its professional dual-camera configuration.

Outer Reel Camera

The outer reel is equipped with a 50m push rod cable and a 360° rotating HD camera head, providing flexible viewing angles inside pipelines. Operators can inspect cracks, blockages, root intrusion, pipe deformation, and lining conditions more clearly from multiple directions.

Inner Reel Camera

The inner reel uses a 30m push rod cable with a compact 17mm stainless steel HD camera, making it ideal for smaller pipes and tighter inspection environments.

Both camera heads support 1080P Full HD resolution, ensuring high-quality inspection images and videos for accurate diagnostics.

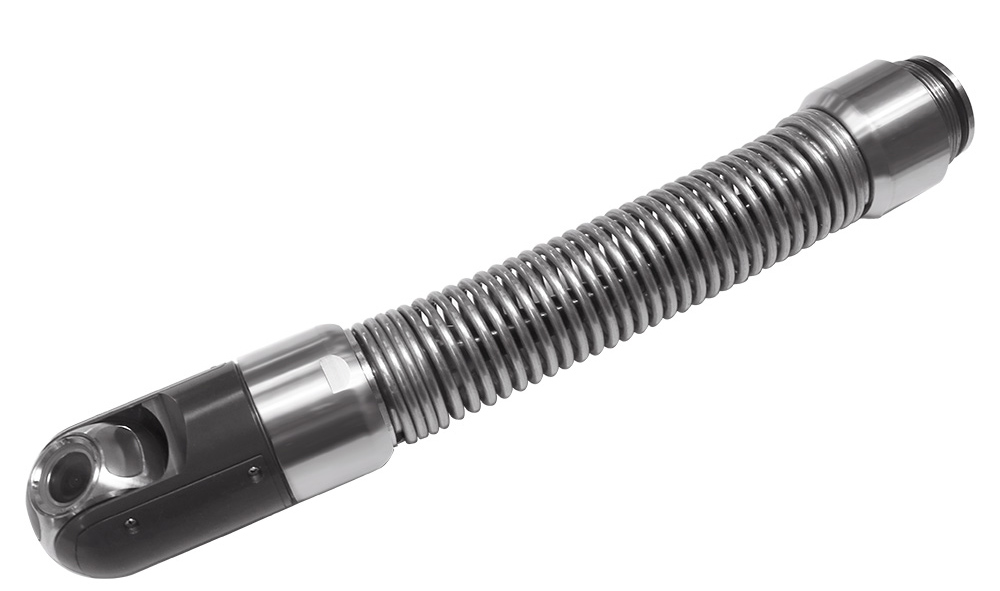

IP68 Waterproof Stainless Steel Camera Head

Pipeline inspection equipment often operates in harsh underground environments. The R22-MAX uses a durable stainless steel camera head with an IP68 waterproof rating, allowing stable operation in wet, muddy, and challenging sewer conditions.

The high-strength camera housing improves durability and extends service life, making it suitable for long-term industrial and municipal applications.

Real-Time WiFi Screen Mirroring

To improve field operation efficiency, the R22-MAX comes with a built-in WiFi screen mirroring function. Operators can view real-time inspection footage directly on mobile devices for easier teamwork and customer communication.

This feature is especially useful for contractors who need to explain pipeline conditions to customers during inspections or rehabilitation projects.

Accurate Pipeline Positioning with 512Hz Locator

The system includes a built-in 512Hz transmitter locator, allowing operators to locate the camera position underground more accurately during inspection work.

Combined with the digital distance counter function, the R22-MAX helps technicians identify defect locations quickly and efficiently, reducing unnecessary excavation and maintenance costs.

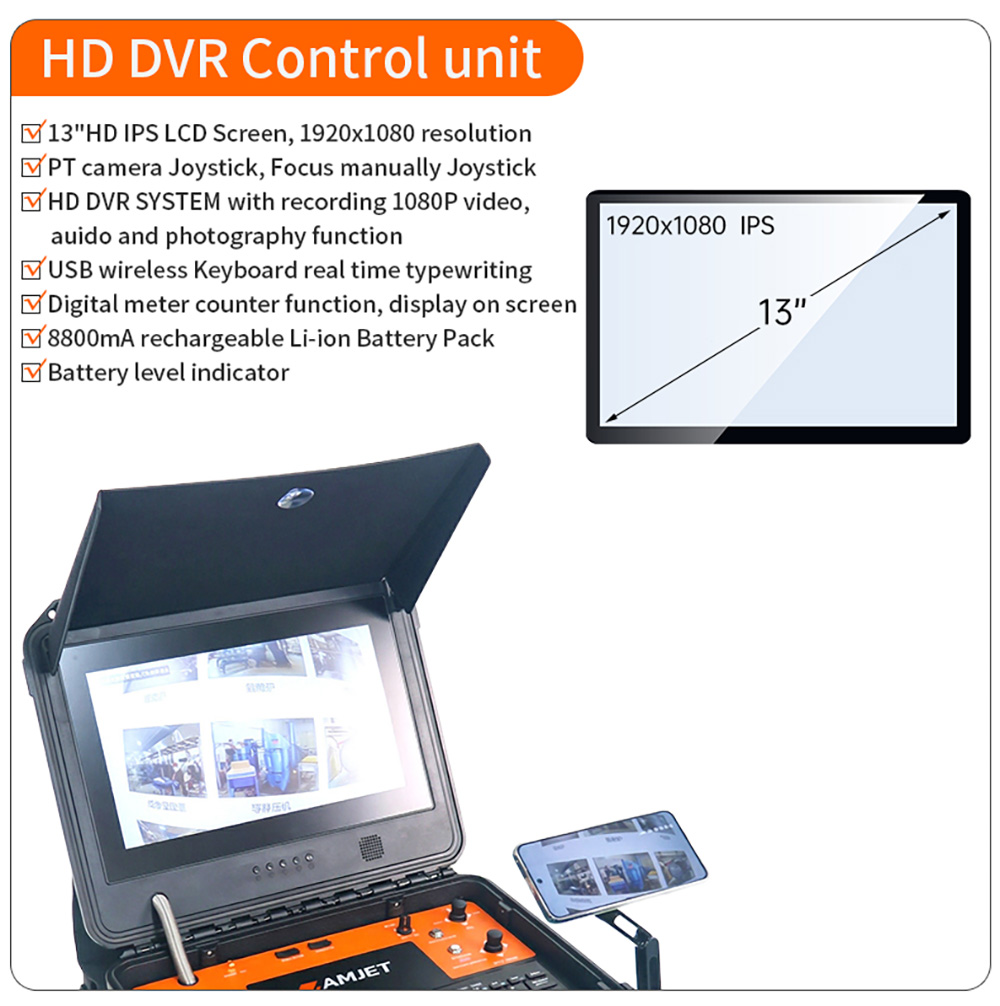

Large 13-Inch IPS HD Display

The inspection system is equipped with a 13-inch IPS color LCD screen with a resolution of 1920 × 1080, delivering sharp and clear pipeline images.

The control panel adopts a professional industrial layout with metal buttons for improved durability and easy operation in outdoor environments.

The system also supports:

• Video recording
• Photo capture
• Audio recording
• USB external storage
• Wireless keyboard input

These functions allow operators to generate inspection reports more conveniently.

Long Working Time for Field Operations

The R22-MAX is powered by a built-in 8800mAh rechargeable lithium battery, supporting more than 6 hours of continuous operation. This makes the system highly suitable for outdoor inspection tasks and municipal maintenance work where stable battery performance is critical.

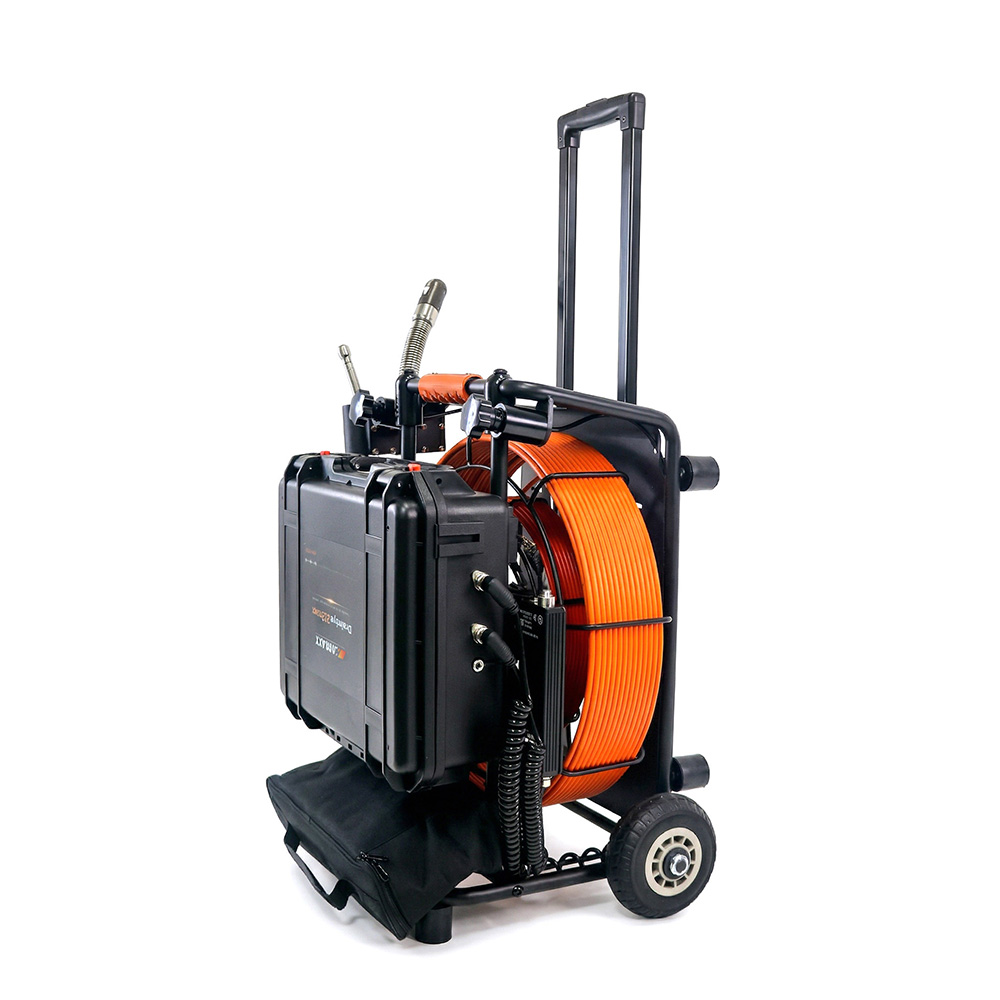

Portable and Professional Pipeline Inspection Solution

With a compact equipment size of 70 × 55 × 50 cm and a total weight of 35kg, the R22-MAX balances portability and industrial-grade performance.

Whether used for:

• Sewer pipeline inspection
• Drain inspection
• CIPP rehabilitation projects
• Municipal maintenance
• Plumbing services
• Underground utility inspection

the Amjet R22-MAX provides reliable inspection performance for professional operators.

Why Choose the Amjet R22-MAX?

The Amjet R22-MAX is more than just a standard drain inspection camera. It is a professional pipeline inspection solution developed specifically for modern trenchless rehabilitation and sewer maintenance applications.

Key advantages include:

• Dual-camera inspection system
• 1080P Full HD imaging
• 360° rotating camera head
• IP68 waterproof protection
• WiFi real-time screen sharing
• 512Hz locating function
• Long battery working time
• Professional CIPP inspection capability

For contractors and municipal teams looking for a reliable and high-performance sewer inspection camera system, the R22-MAX offers an efficient and practical solution for modern pipeline inspection work.
