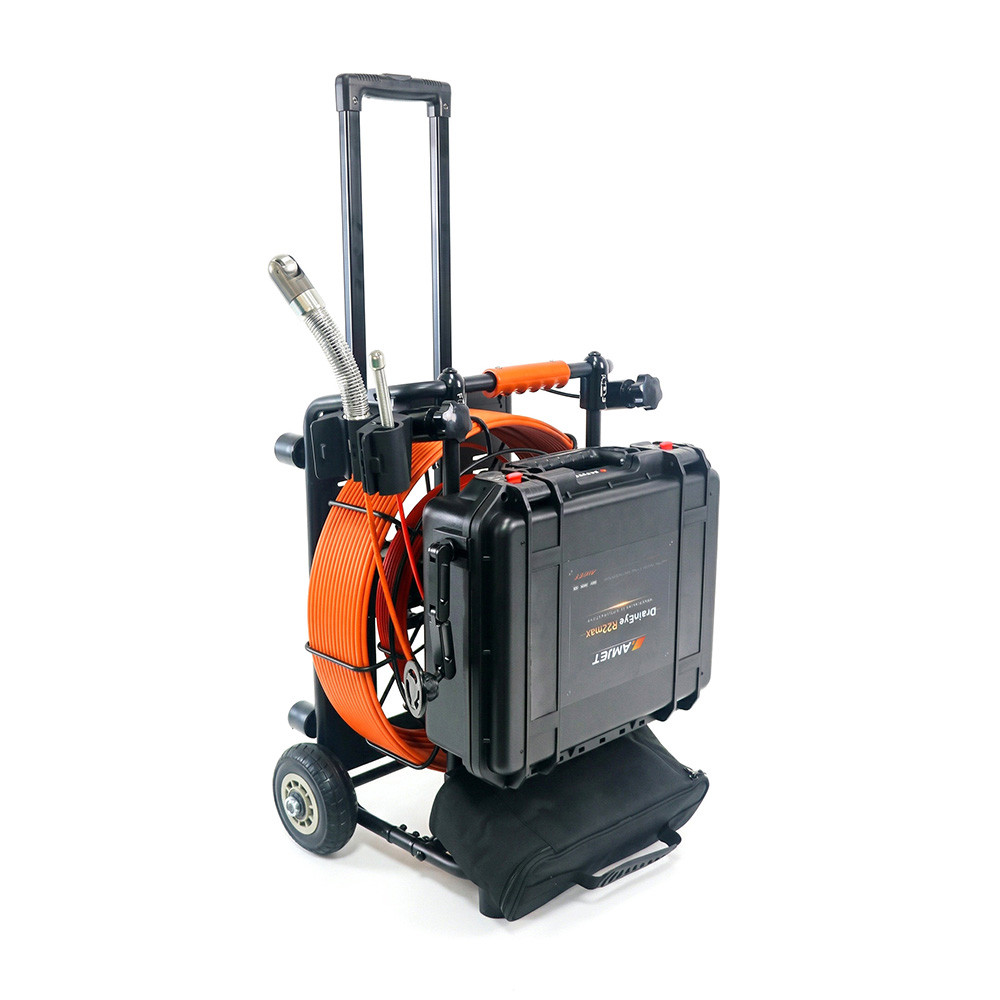

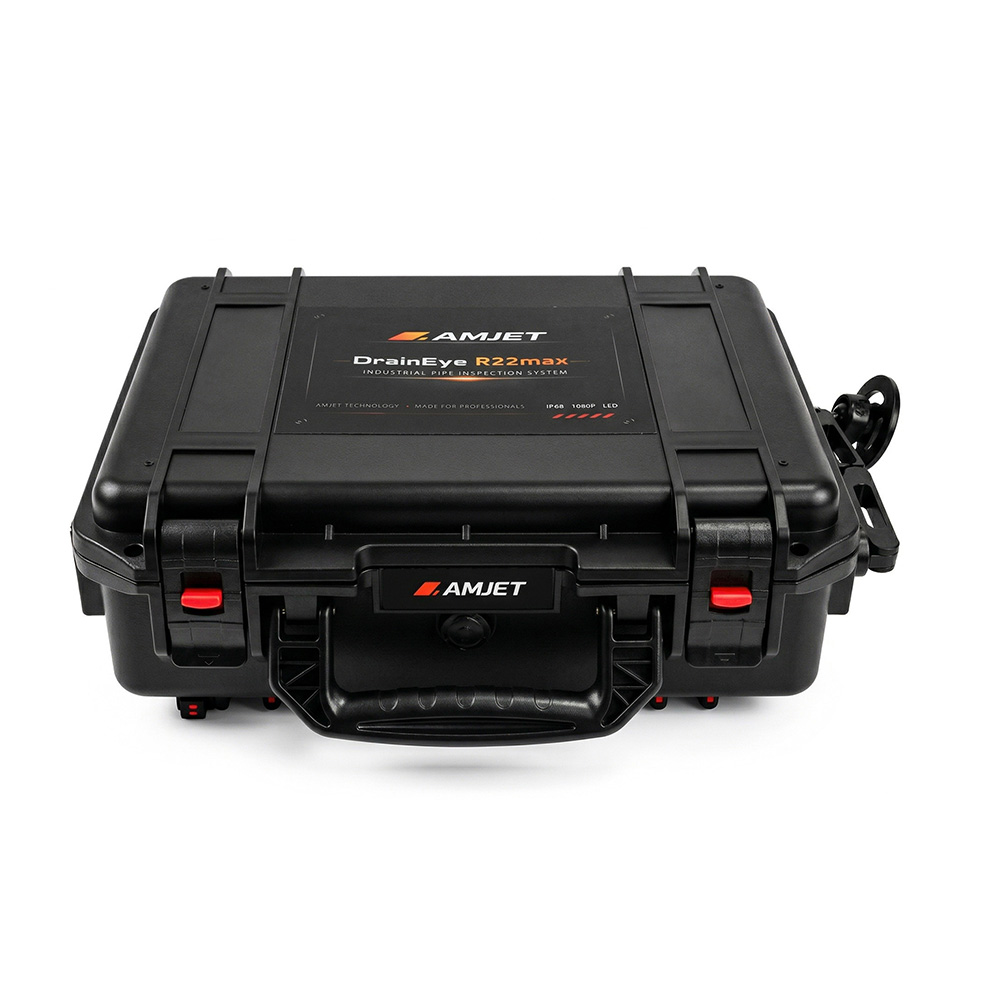

R22-MAX Sewer Inspection Camera

The Amjet R22-MAX Sewer Inspection Camera is a professional dual-camera pipeline inspection system designed for sewer inspection, drain inspection, plumbing maintenance, and CIPP pipe rehabilitation applications. Built for real-world underground working environments, the R22-MAX combines advanced imaging technology, durable industrial construction, and intelligent inspection functions to help contractors and maintenance teams improve inspection efficiency and accuracy.

Equipped with a dual-reel camera system, Full HD imaging, WiFi screen mirroring, and a 360° rotating camera head, the R22-MAX provides reliable inspection performance for both residential and municipal pipeline projects.

Professional Sewer Inspection Camera for Multiple Applications

The R22-MAX is specially designed for:

• Sewer pipe inspection
• Drain inspection
• CIPP pipe rehabilitation
• Municipal pipeline maintenance
• Plumbing inspections
• Underground utility inspection
• Industrial pipeline inspection

Its compact structure and professional features make it suitable for both daily maintenance work and complex underground inspection tasks.

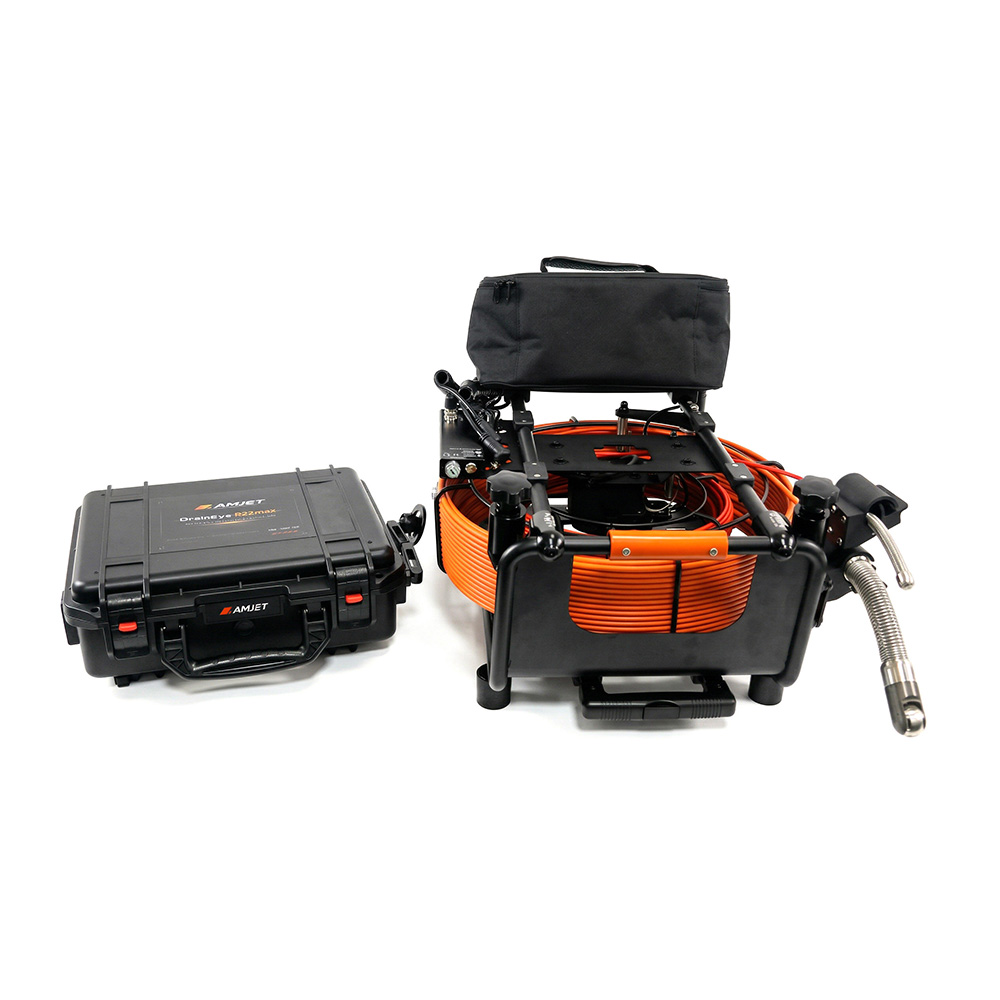

Dual-Camera Design for Flexible Pipeline Inspection

One of the key advantages of the R22-MAX sewer inspection camera is its professional dual-camera design.

Outer Reel Inspection System

The outer reel features a 50m push rod cable with a 360° rotating HD camera head, allowing operators to inspect pipelines from multiple angles. This design helps identify cracks, root intrusion, pipe deformation, blockages, and lining defects more clearly.

Inner Reel Inspection System

The inner reel includes a 30m push rod cable and a compact 17mm HD stainless steel camera head, making it ideal for smaller pipelines and narrow pipe inspection environments.

This dual-camera configuration greatly improves inspection flexibility for different pipe sizes and working conditions.

1080P Full HD Image Quality

The R22-MAX drain inspection camera supports 1080P Full HD video resolution, delivering sharp and detailed pipeline images for professional diagnostics.

The camera system uses high-quality CMOS sensors and stainless steel camera housings to ensure stable image performance in dark underground environments.

Whether inspecting sewer blockages, damaged pipes, or rehabilitation projects, operators can obtain clear visual information for more accurate maintenance decisions.

360° Rotating Camera Head

Unlike standard sewer inspection systems, the R22-MAX is equipped with a 360° rotating camera head that allows users to inspect pipeline walls more comprehensively.

This feature is especially useful for:

• Detecting pipe cracks
• Checking CIPP liner installation quality
• Inspecting pipe joints
• Identifying root intrusion
• Monitoring pipeline corrosion

The rotating camera function improves inspection accuracy and reduces blind spots inside pipelines.

IP68 Waterproof Stainless Steel Camera

Underground pipeline environments are often wet, dirty, and challenging. To ensure durability and long-term reliability, the R22-MAX sewer pipe inspection camera uses a rugged IP68 waterproof stainless steel camera head.

The industrial-grade waterproof design allows stable operation in harsh sewer environments and helps extend equipment service life.

Real-Time WiFi Screen Mirroring

The built-in WiFi function supports real-time screen mirroring on mobile devices, making inspection work more convenient and efficient.

This feature allows:

• Remote viewing of inspection footage
• Easier teamwork during inspections
• Better communication with customers
• Convenient project demonstrations

The WiFi screen sharing function is particularly useful for contractors and municipal maintenance teams during field operations.

Built-In 512Hz Locator Function

The R22-MAX includes a built-in 512Hz transmitter locator for accurate underground camera positioning.

Combined with the digital meter counter function, operators can quickly locate pipeline defects and reduce unnecessary excavation work.

This feature improves work efficiency and helps lower maintenance costs.

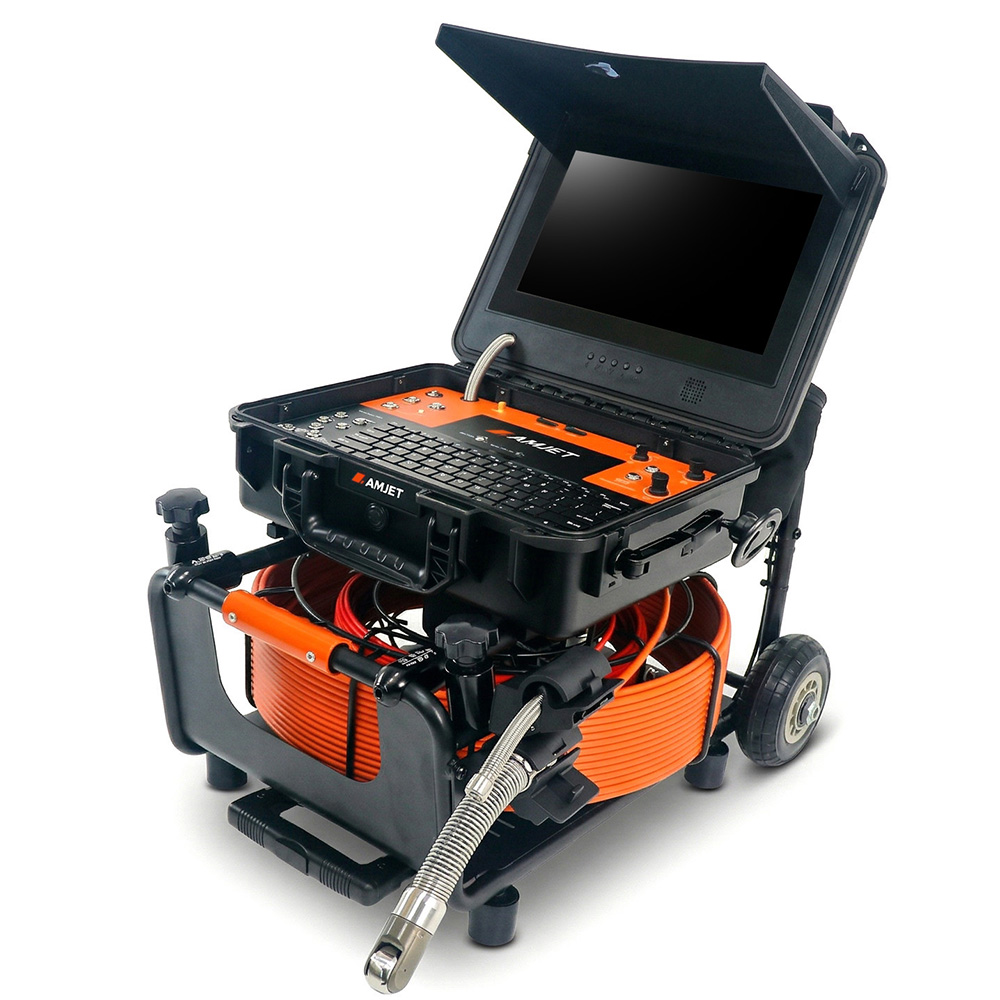

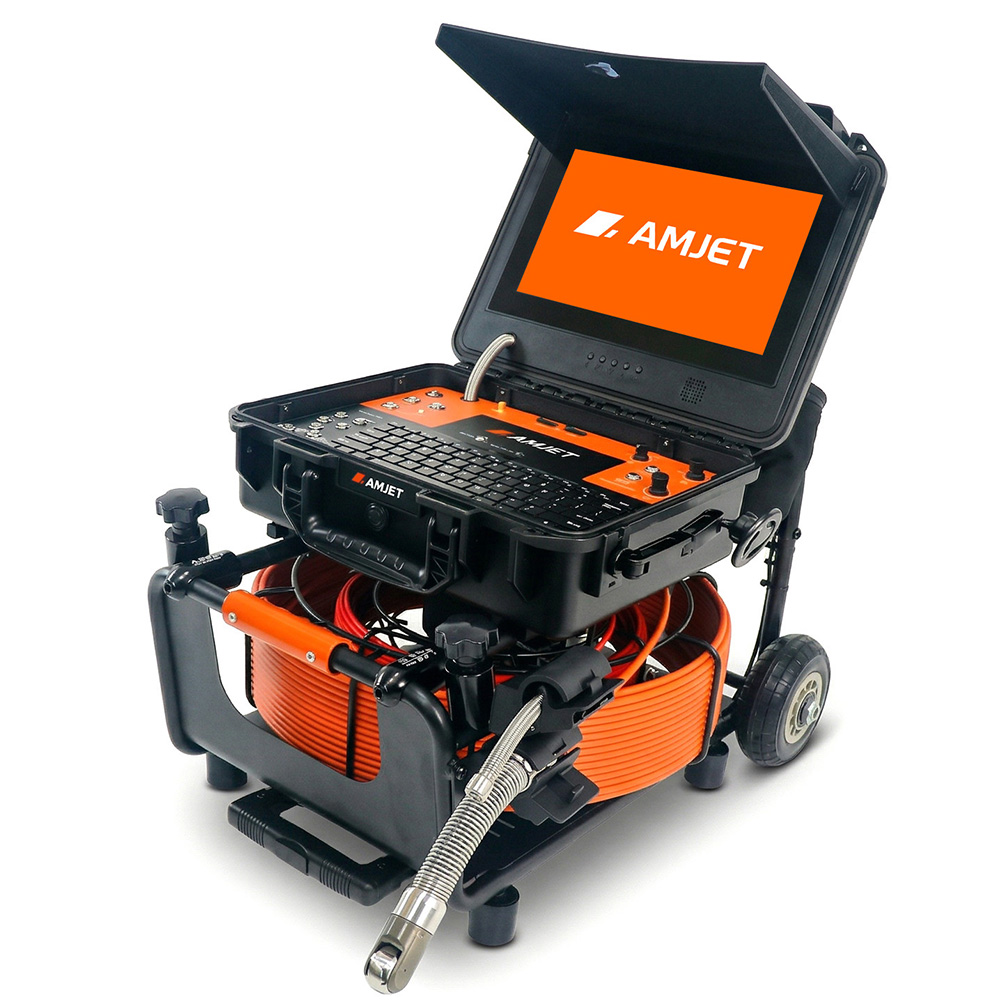

13-Inch IPS HD Display Screen

The system is equipped with a professional 13-inch IPS color LCD monitor with a resolution of 1920 × 1080.

The large display screen provides:

• Clear pipeline images
• Better visibility in outdoor environments
• Easier operation during long inspections

The industrial control panel uses metal buttons and a professional layout for improved durability and user experience.

Multiple Recording Functions

The R22-MAX pipeline inspection camera supports:

• Video recording
• Photo capture
• Audio recording
• USB external storage
• Wireless keyboard text input

Operators can conveniently save inspection files and generate professional inspection reports for customers.

Long Battery Working Time

The system features a built-in 8800mAh rechargeable lithium battery, supporting more than 6 hours of continuous operation.

This long battery life makes the R22-MAX ideal for outdoor sewer inspection work and extended pipeline maintenance projects.

Product Specifications

• Product Model: R22-MAX
• Suitable Pipe Diameter: 40mm – 200mm
• Outer Reel Cable Length: 50m
• Inner Reel Cable Length: 30m
• Camera Resolution: 1080P Full HD
• Display Screen: 13 Inch IPS LCD
• Camera Protection Rating: IP68 Waterproof
• Camera Head: 360° Rotating HD Camera
• Built-in Locator: 512Hz
• WiFi Function: Real-Time Screen Mirroring
• Battery Capacity: 8800mAh Rechargeable Battery
• Working Time: More Than 6 Hours
• Product Size: 70 × 55 × 50 cm
• Weight: 35kg

Why Choose the Amjet R22-MAX Sewer Inspection Camera?

The Amjet R22-MAX is designed for professionals who need a reliable, durable, and high-performance sewer inspection camera system.

Key advantages include:

• Dual-camera inspection design
• 1080P HD image quality
• 360° rotating camera head
• IP68 waterproof protection
• Built-in WiFi screen mirroring
• 512Hz locating function
• Long working time battery
• Professional CIPP inspection capability

Whether used for drain inspection, sewer maintenance, or municipal pipeline rehabilitation, the R22-MAX provides efficient and accurate underground inspection performance for professional users worldwide.
